80“ passive 3D-Stereo Monitor

Immersive 3D-Stereo in 4K

for Professional Applications

The 3D GlobeView is an ultra-high resolution, large display panel with a resolution and picture quality in 3D-stereo not seen before in large-format LCD displays. Designed specifically for high resolution professional applications, the 3D GlobeView display offers the image quality, connectivity, industrial design and configuration options required for professional and mission-critical environments.

As a 3D-stereo display, it is ideal for stereoscopic, true-depth group visualization and team interaction, offering a unique combination of very large screen area and high pixel density. It is ideally suited to provide high-resolution visual information, for instance in mid-sized conference rooms. The display surface of the 3D GlobeView can be expanded horizontally by adding additional units to create a 3D Powerwall.

For applications such as oil & gas exploration, geospatial intelligence, command center collaboration, engineering design visualization and simulation, the 3D GlobeView delivers the ultimate visual 3D-stereo or VR-interactive display surface in this format.

AMD Ryzen Threadripper Logo

NEW!

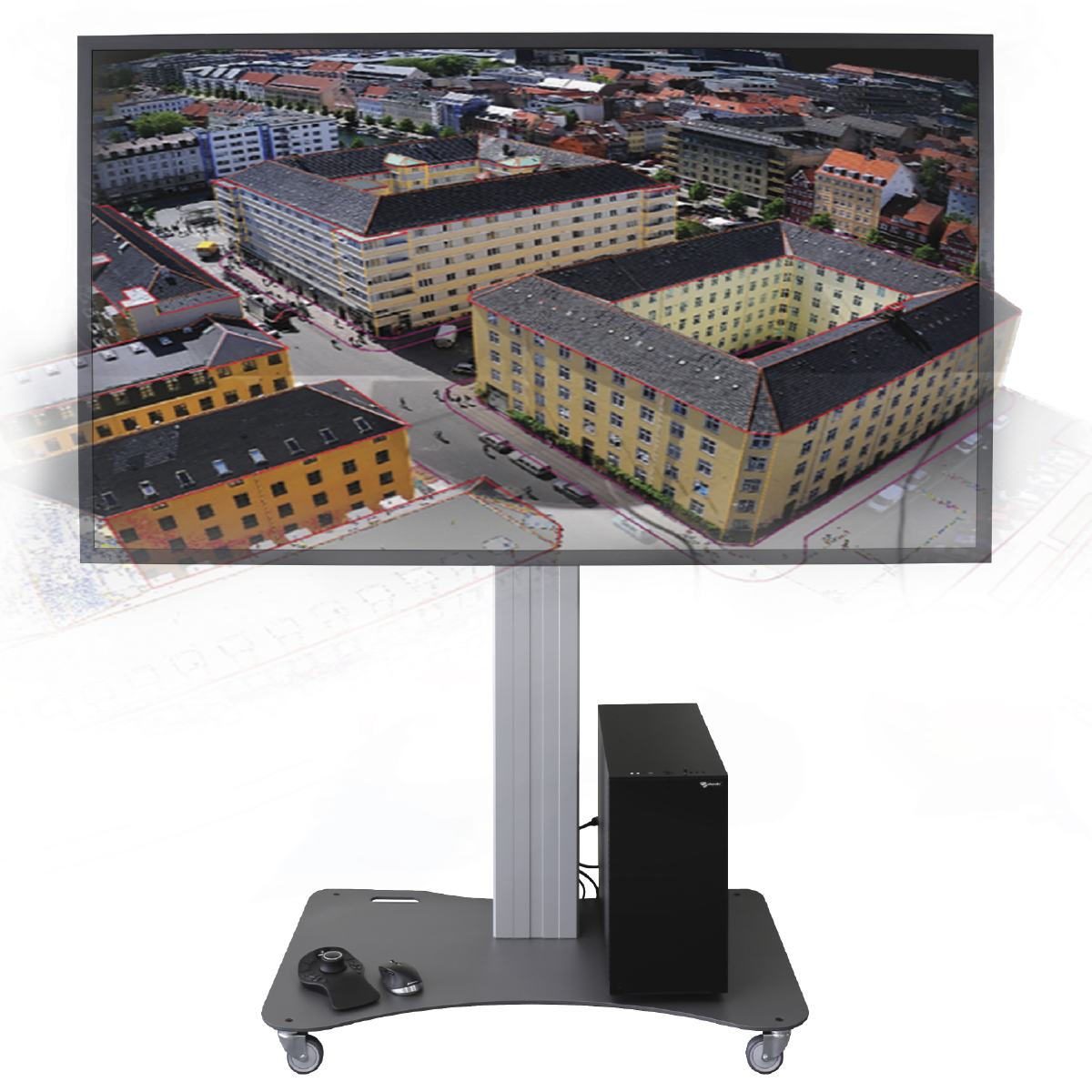

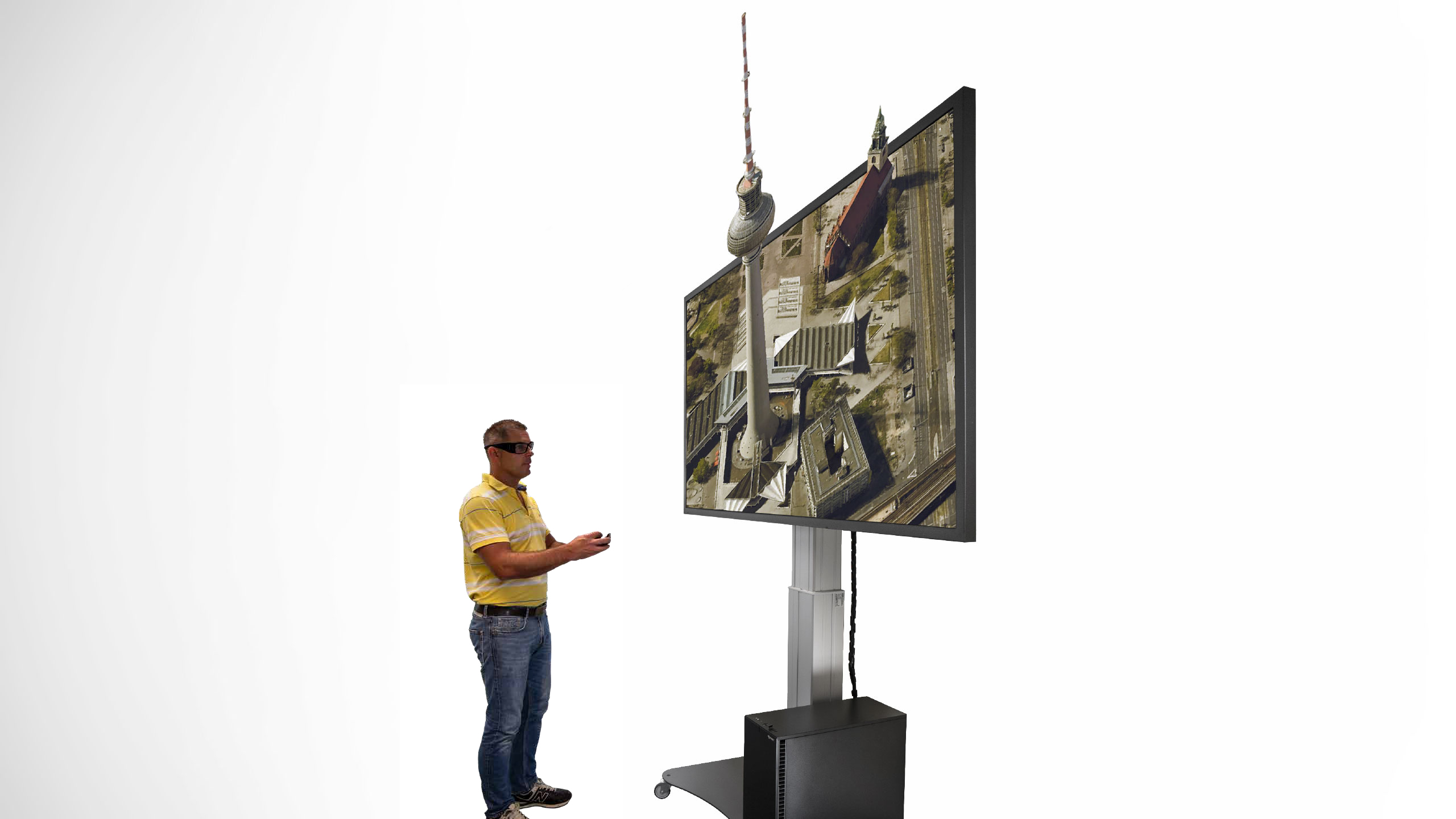

3D GlobeView 80“ passive 3D-Stereo Monitor

UHD-resolution, 8 MP (3.840 x 2.160)

Native 4K-Resolution @ 120Hz with 10bit

Circular line-by-line polarization 3D technolog

Optional Head-Tracking and gesture control

Innovative, height-adjustable mounting solution
smart VR-Wall Automobil-Hersteller konfiguriert Fahrzeug in VR-Umgebung

Advanced multi-source viewing

Fan less, whisper quiet operation with built-in power redundancy, significantly reducing failure risk

80“ Ultra HD resolution (3.840 x 2.160) LCD display

Supports native 4K at up to 120Hz with HDMI and DisplayPort connectivity

1,07 billion colors at full 10-bit color depth

Effortlessly move between 2D and 3D content with today’s latest generation of graphic cards

Low cost, reliable passive 3D-stereo, flicker-free

Optimized for High Resolution, Professional Applications

Designed to meet the demanding requirements of professional high resolution visual collaboration – even in 3D-stereo

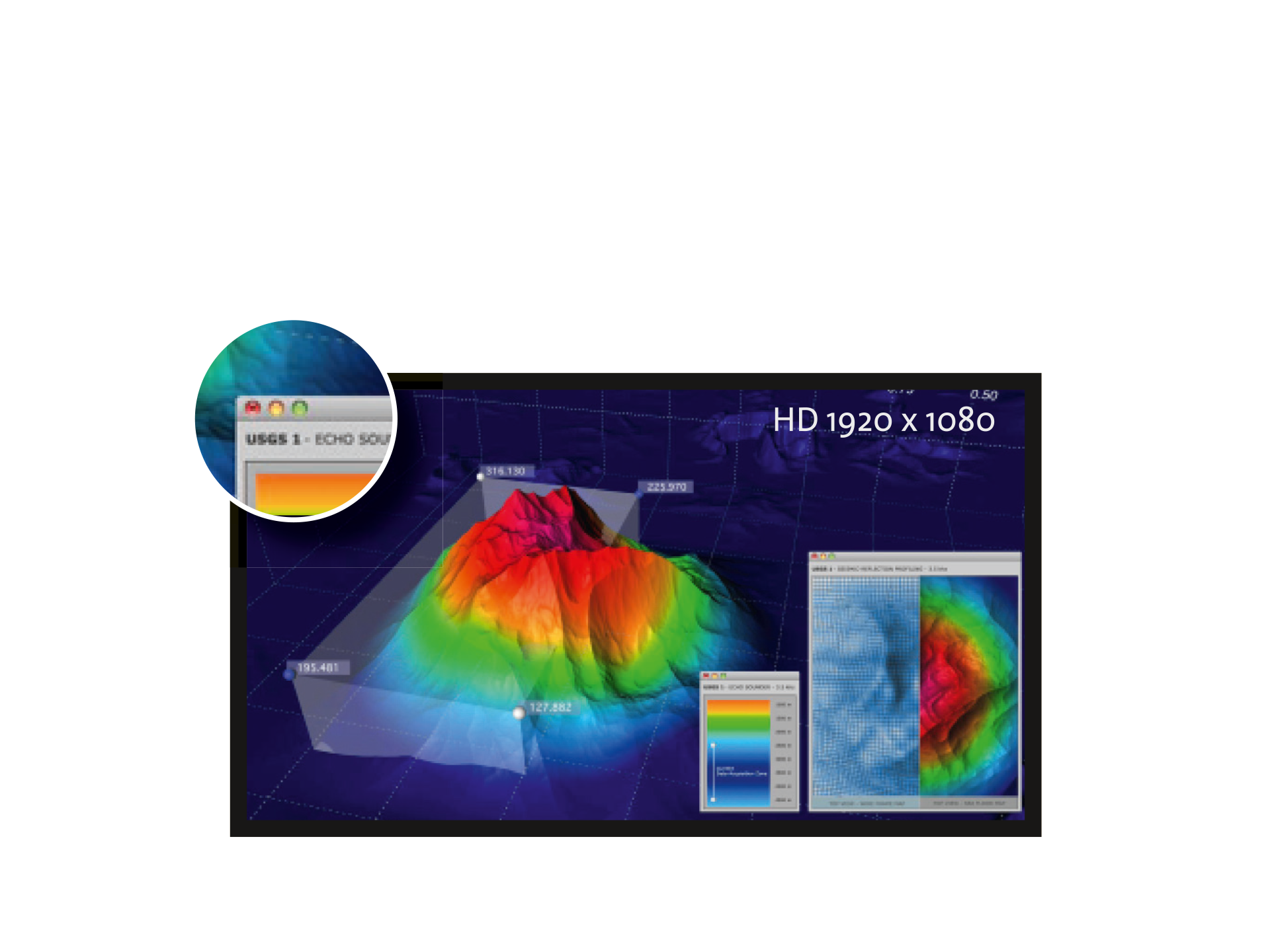

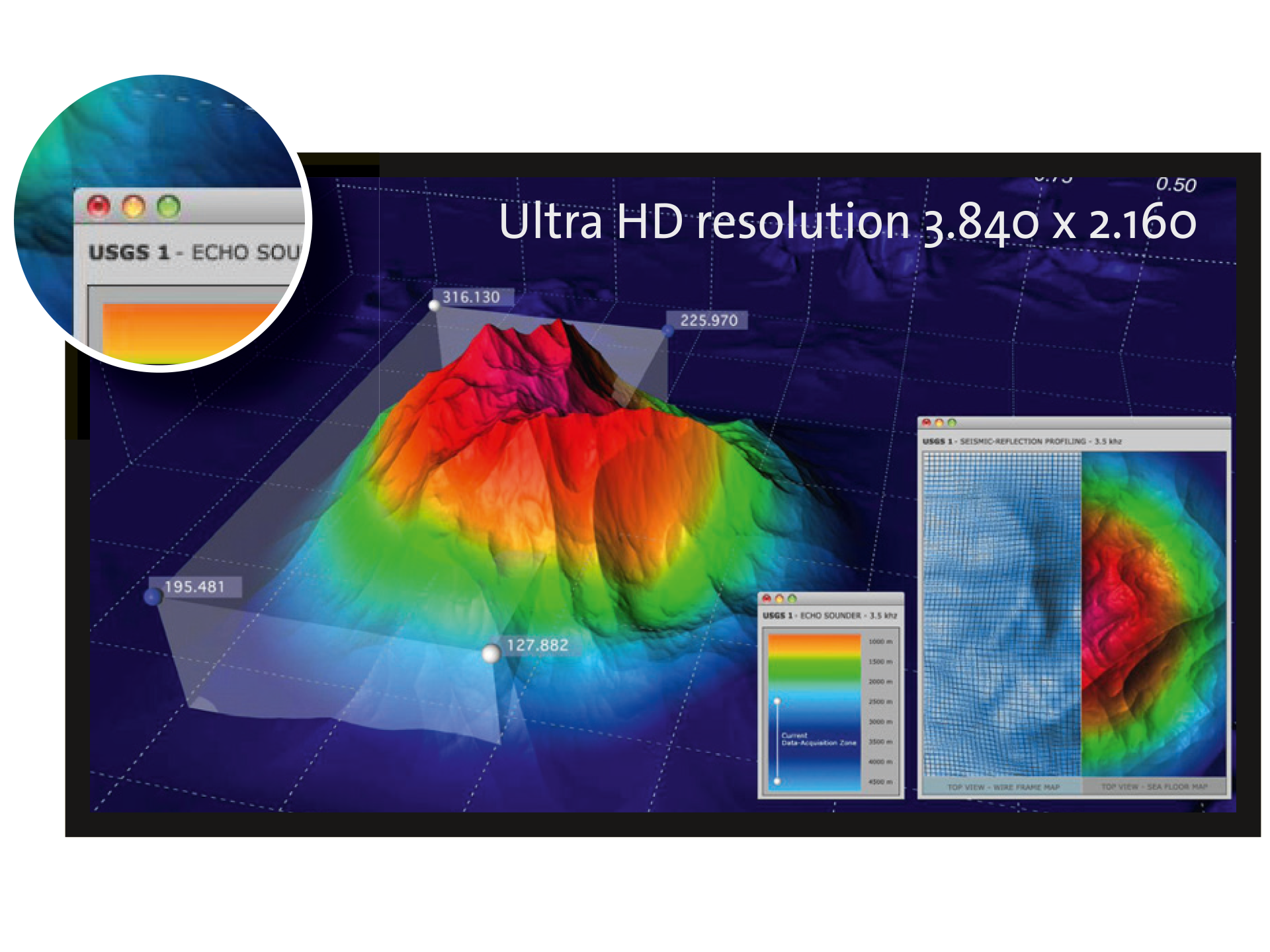

4K (UHD) Resolution in Perfection

The 3D GlobeView has four times the resolution and pixel density of a comparably-sized Full-HD display. Displaying visually rich content in UHD, it produces clarity and fine detail that appears sharp even at close viewing distances, even in 3D-stereo mode. A 3D GlobeView display provides the same resolution and similar screen area to that of a 2×2 narrow bezel LCD video wall without any panel separation in the display area. The 3D GlobeView incorporates advanced display technology to further enhance image quality. With features such as up 120Hz refresh rate, 10-bit color depth, local dimming for enhanced contrast and high brightness panel options, the monitor provides uncompromising image quality not possible with other display technologies, even in 3D-stereo mode!

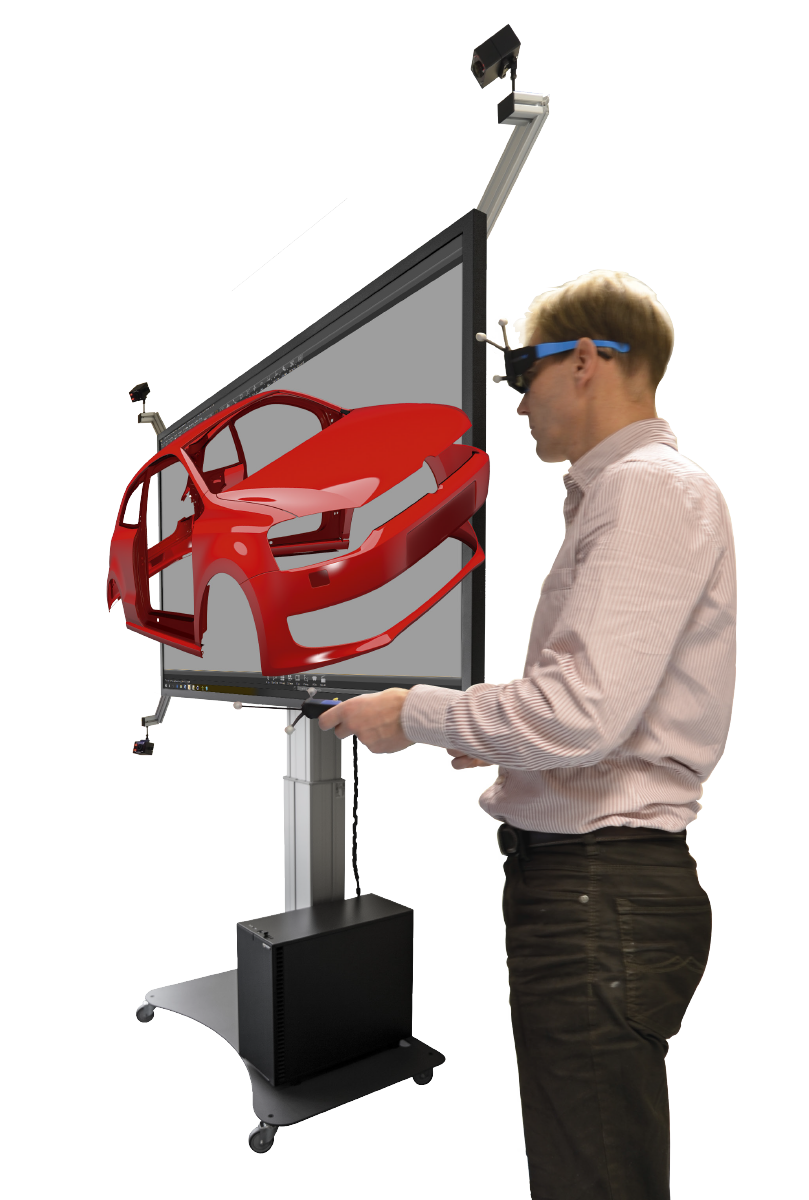

3D GlobeView 4K (UHD) Resolution in Perfection
3D GlobeView 4K (UHD) Resolution in Perfection

Built By Professionals, for Professionals

The 3D GlobeView is designed from the ground up for professional applications. The display incorporates the latest standards in digital video technology, i.e. 1x USB Type-C 1.4 port, 2x HDMI 2.0, 2x DisplayPort 1.4, 2x USB 2.0 – so that multiple 4K sources can be connected simultaneously, switched between and displayed in native resolution. The display has been optimized and tested with a range of the most popular professional graphics cards, controllers and content sources, in order to make solution deployment easier and more successful for applications, including:

Geospatial software
Oil and Gas Exploration and Production
Process Control
Computer Aided Design (CAD)
Architecture
Visualization and Simulation
Medical Imaging
Digital Post-Production
Science – Academic Research and Commercial
Financial Analysis
Control Room
Collaborative Conference Room / Team Room
Digital Signage
3D-Training and Education

2D Monoscopic or 3D-Stereo

4K passive-stereo LCD display to move seamlessly between 3D and continuous high-quality 3D-stereo with passive glasses.

  • 2D or 3D-stereo with one click

    The 3D GlobeView can display 3D-stereo and conventional 2D content, maintaining the full capabilities of a multi-purpose, ultra-highresolution display throughout. The display is compatible with all popular graphic cards and 3D-visualization software tools, provided by various applications, including:

    • Data Visualization
    • Molecular Modeling
    • Engineering and Design
    • D Production Review
    • QC/QA Visualization for 3D Printing
    • Oil and Gas Exploration
    • Simulation and Training
  • Lightweight, passive 3D Glasses

    The 3D GlobeView uses passively-polarized glasses, which eliminate fatigue and eye strain when viewing 3D images, effectively facilitating continuous and comfortable use over many hours per session. Made of durable and robust Nylon material, they are lightweight, inexpensive and do not require any electronic or moving parts.
  • Stunning 3D Realism at 4K Resolution

    The 3D GlobeView Stereo-Monitor uses film-type, patterned light-retarder technology to display two images at the same time on a single screen. Each line is circularly polarized in alternate directions to be visible to one eye only. At the full 4K non-stereo resolution, this results in FHD resolution (1080p) in vertical and original 4K (3840p) resolution in horizontal direction. The result is a very bright and sharp 3D-stereo image, especially when compared to 120Hz monitors and associated active (batterypowered) shutter glasses.

Highlights

High resolution (3.840 x 2.160) in 3D-stereo Mode
Move seamlessly between 2D and continuous stereo 3D-stereo passive glasses
Passive glasses deliver hours of comfortable use
Much brighter 3D-stereo than active shutter panel technology
3D GlobeView 4K (UHD) Resolution in Perfection
    smart VR-Wall Automobil-Hersteller konfiguriert Fahrzeug in VR-Umgebung

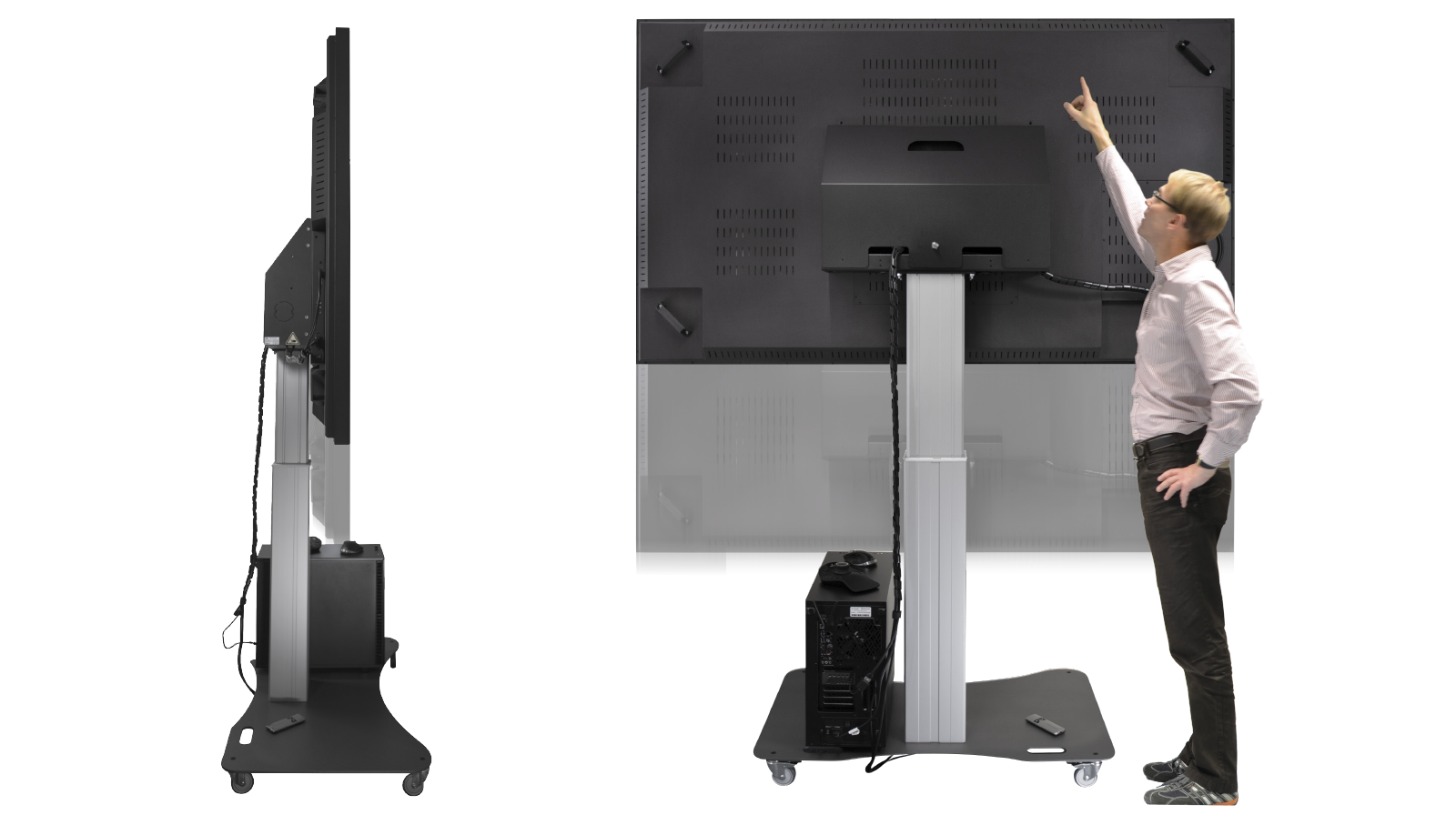

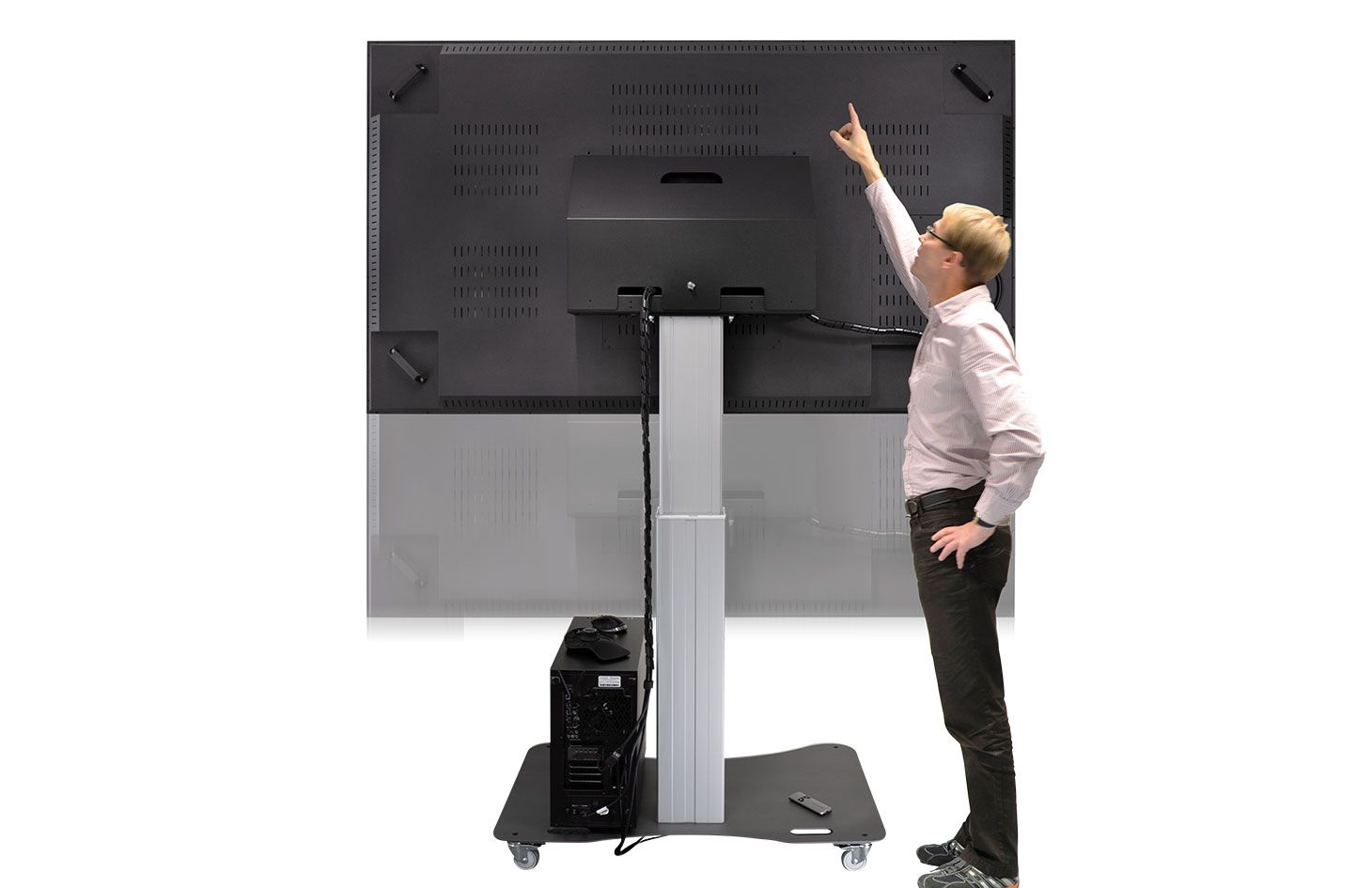

    Fully mobile thanks to castor wheels

    Electrical height adjustment by remote control

    Height adjustment from 120 to 190 cm (center of screen)

    Massive, solid aluminum and steel construction

    Space for Workstation or mini-PC

    Lockable back cover for remote controls or mini-PCs

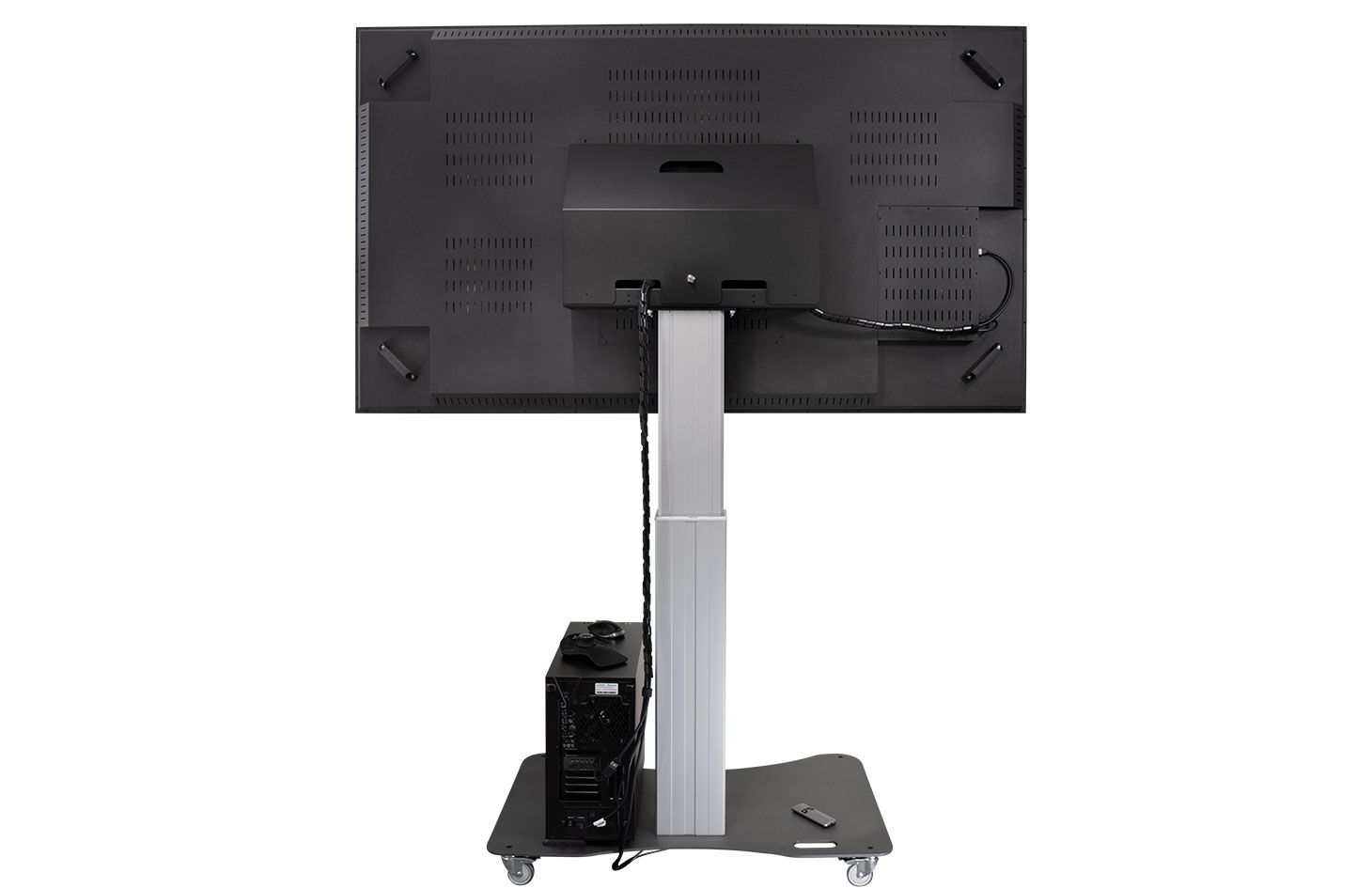

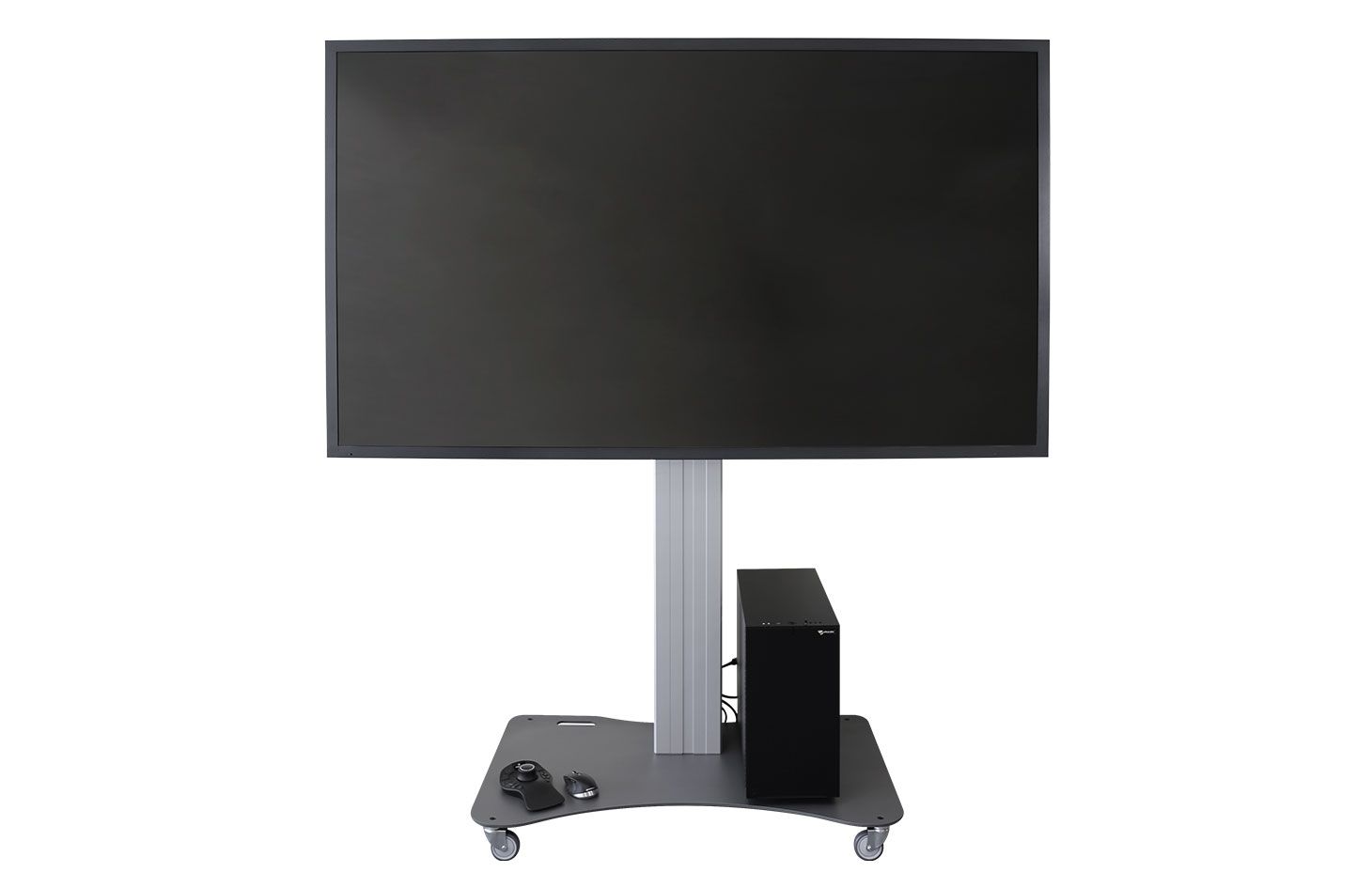

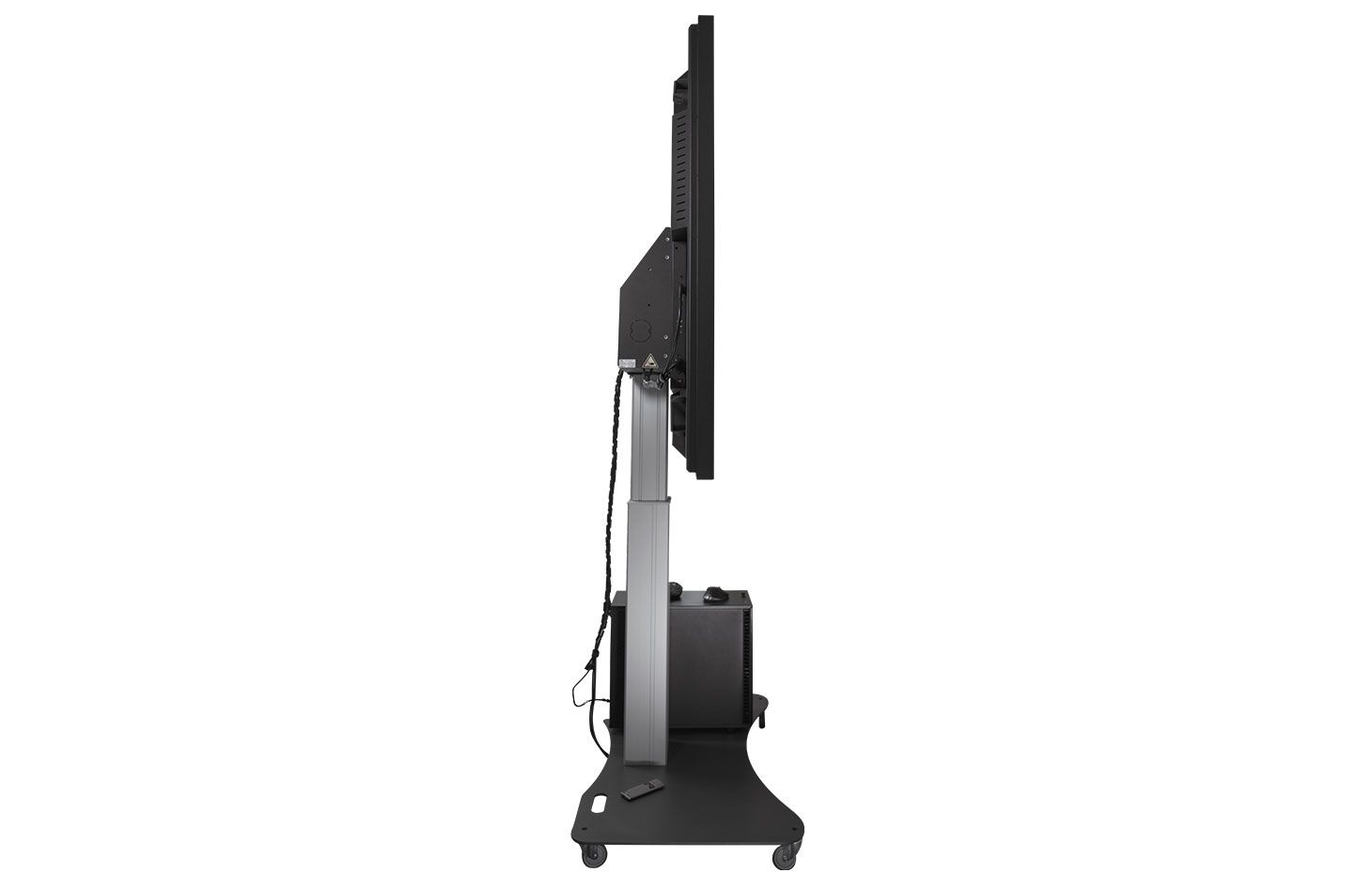

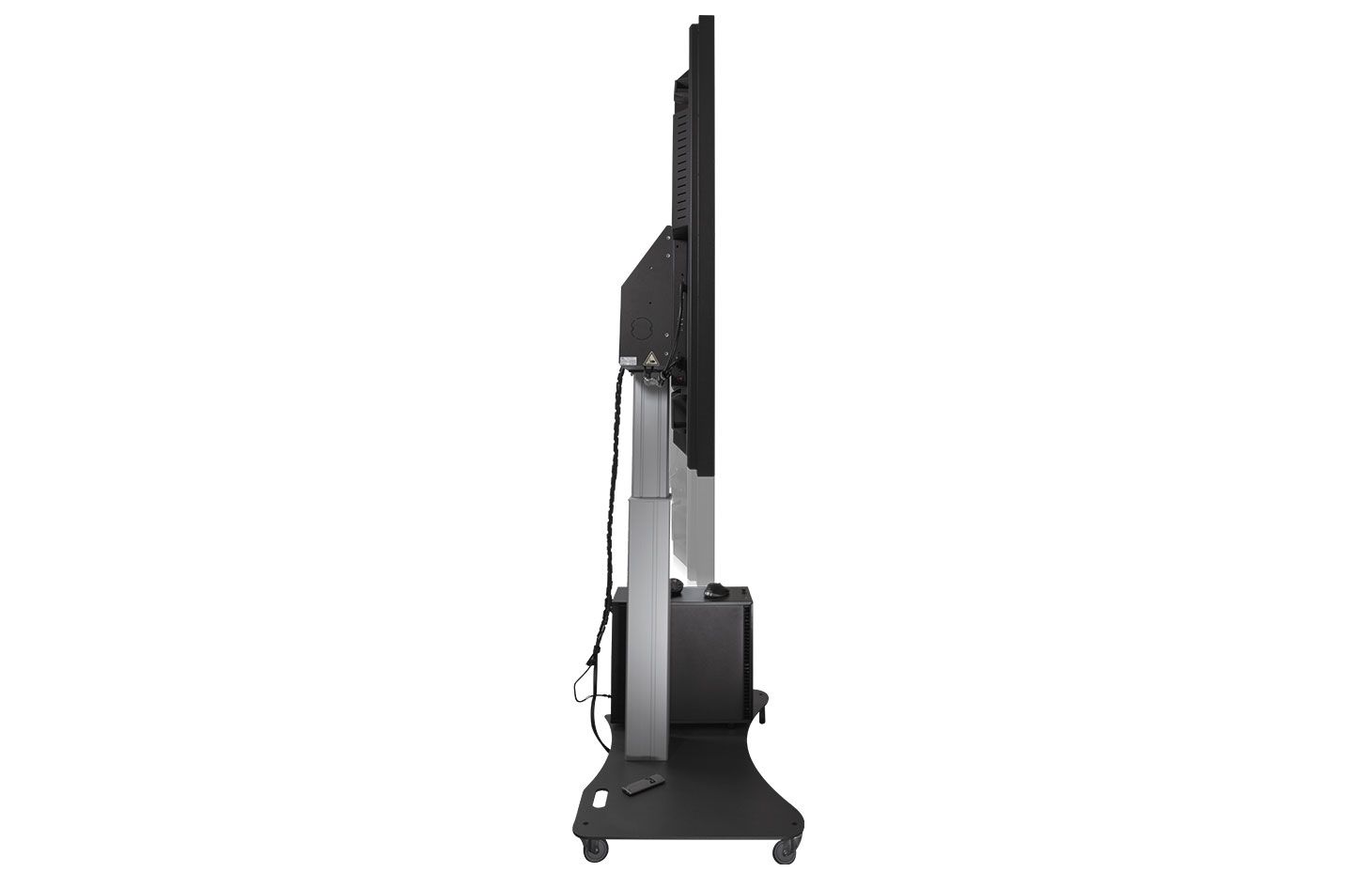

    Mounting Solution for the 3D GlobeView Monitor

    Adjustable, full electric Mounting System for VESA 800×400 for fixed and mobile installation.

    Floor Mounting-Solution

    Schneider Digital offers a special floor mounting for 80” 3D GlobeView Display with a VESA mount. What makes this product so unique is its adjustment flexibility and ease of installation with just three installation steps. This wheeled floor stand with electrical height adjustment (adjustable by remote control) has continuous and silent height adjustment and an integrated screen bracket suitable for most VESA display mounts. The included VESA bracket has another special feature as it can also be used as support for a desktop PC at the back.

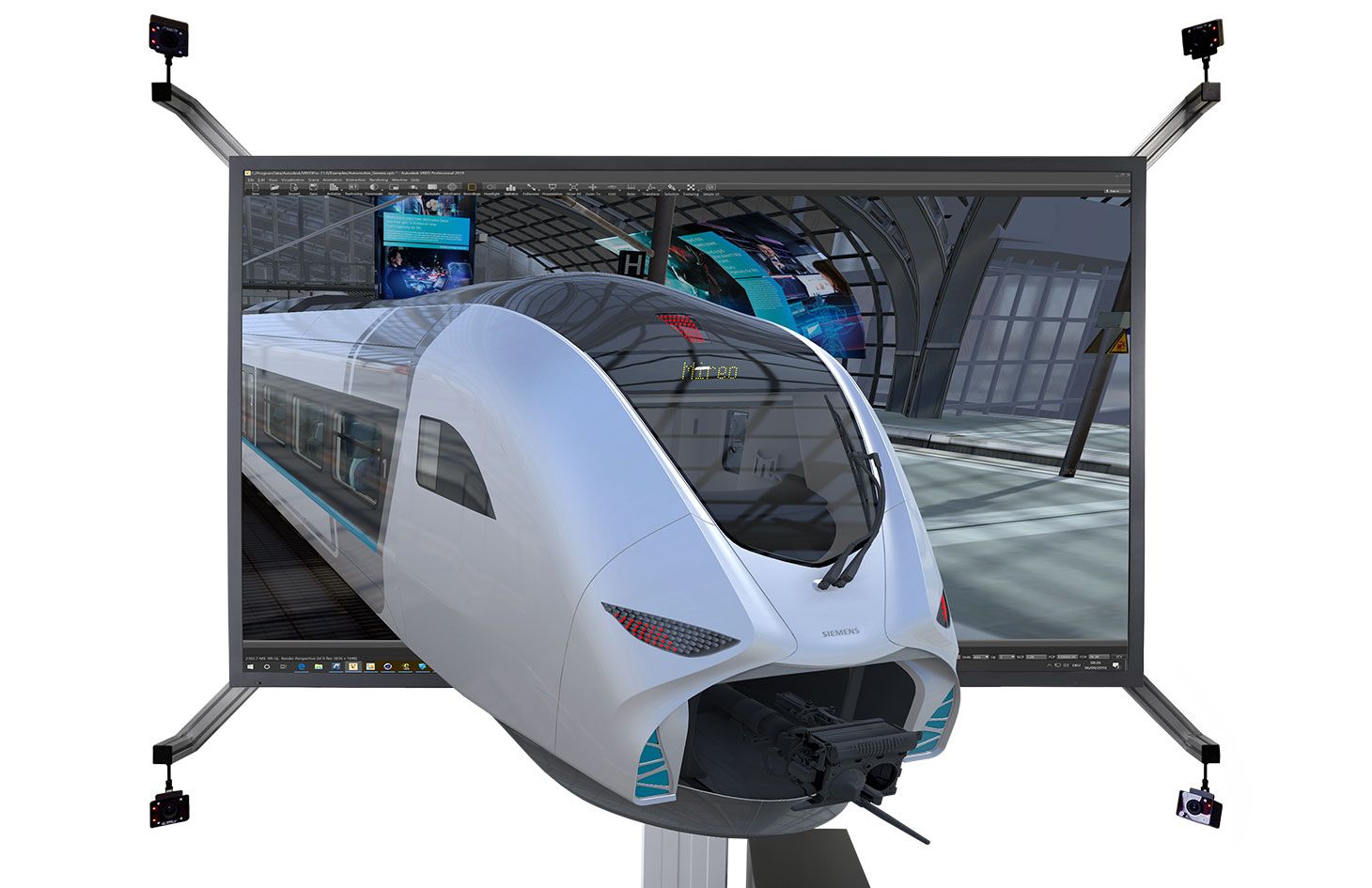

    Tracking-Solutions for the 3D GlobeView Display

    Consisting of multiple, intelligent tracking cameras and one central controller with DTrack2 software. Fully scalable from two to 50 cameras and up to 45 targets simultaneously tracked with 6 degrees of freedom (DoF).

    ARTTRACK systems
    Consisting of multiple, intelligent tracking cameras and one central controller with DTrack2 software. Fully scalable from two to 50 cameras and up to 45 targets simultaneously tracked with 6 degrees of freedom (DoF). The current ARTTRACK5 model is fully compatible with its predecessors ARTTRACK2 and ARTTRACK3, as well as with TRACKPACK cameras.
    TRACKPACK systems
    Available in versions from two (2) up to eight (8) cameras, connected to one ART Controller with DTrack2 software. TRACKPACK systems are recommended for medium-sized tracking spaces and can be combined with ARTTRACK5 and ARTTRACK5/C cameras.
    SMARTTRACK systems
    A fully integrated stereo camera system for smaller tracking volumes. It consists of two (2) cameras and one controller with DTrack2 software in a compact housing. Simultaneous tracking of up to 4 targets is possible.
    Highly accurate tracking within large working areas
    Real-time tracking for large working areas 3D localization technology with a positioning Tracking Bar

    The PST Iris series has the largest tracking range of the PST tracking cameras and is the ideal solution for tracking objects inside larger working areas. It is also an excellent choice for situations where the PST camera cannot be positioned close to the tracking target(s). It is ideal for use in measurement tasks, monitoring a working or larger simulation environments.

    The PST Iris HD is the premium version of the PST Iris optical tracker. It is equipped with two (2) HD cameras that cover an even wider measurement area with high-precision 6 DoF tracking. The resolution and the refresh rate of the PST Iris HD can be adjusted, enabling highly accurate tracking for almost any setup scenario.

    Optical tracking and its advantages

    Optical tracking has proved to be a valid and often superior alternative to tracking systems, based on other technologies, such as magnetic, acoustic, gyroscopic and mechanical setups. There are various advantages to optical tracking, such as:

    • Optical tracking is less susceptible to environmental interference (noise)
    • Optical tracking does not suffer from drift problems
    • Optical tracking allows for many objects to be tracked simultaneously
    • Interaction devices can be lightweight and wireless.

    3D GlobeView Monitor Specifications

    Display
    80″ (2.032 mm) Screen Size
    3.840 × 2.160 Resolution, RGB stripe arrangment
    1.06 Billon Colors (10-bit)
    400 cd/m2 Brightness (Center 1point, Typ.)
    Aspect Ratio: 16:09

    LED BackLit-Technology
    8 ms Response Time G/G
    178°/178° Viewing Angle (H/V)

    Contrast Ratio: 1.200 : 1
    Frequency
    Vertical 120Hz, Horizontal 74 MHz
    Pixel pitch
    0,453 x 0.453 mm
    Monitor type
    Passive 3D stereo monitor
    3D technology
    Passive stereo, line-by-line circular polarization
    3D-Characteristics
    200 cd/m2 Brightness with glasses
    3.840 x 1.080 per eye resolution
    3D-Formats
    Horizontally line interlaced
    Operating Systems
    Windows / Linux / macOS-Compatibility
    Certification
    CE
    Power supply
    Internal power supply, 100-230V, 50-60Hz
    Power Consumption
    Power Consumption 167,1W typical;
    Annual PowerConsumption 300,2 kWh / year
    Surface Treatment
    Hard coating(2H)
    Anti-glare treatment of the front polarizer (Haze 1% Typ)
    Weight
    92 kg
    Measurements
    1.800 x 1.045 x 90 mm (W x H x D)

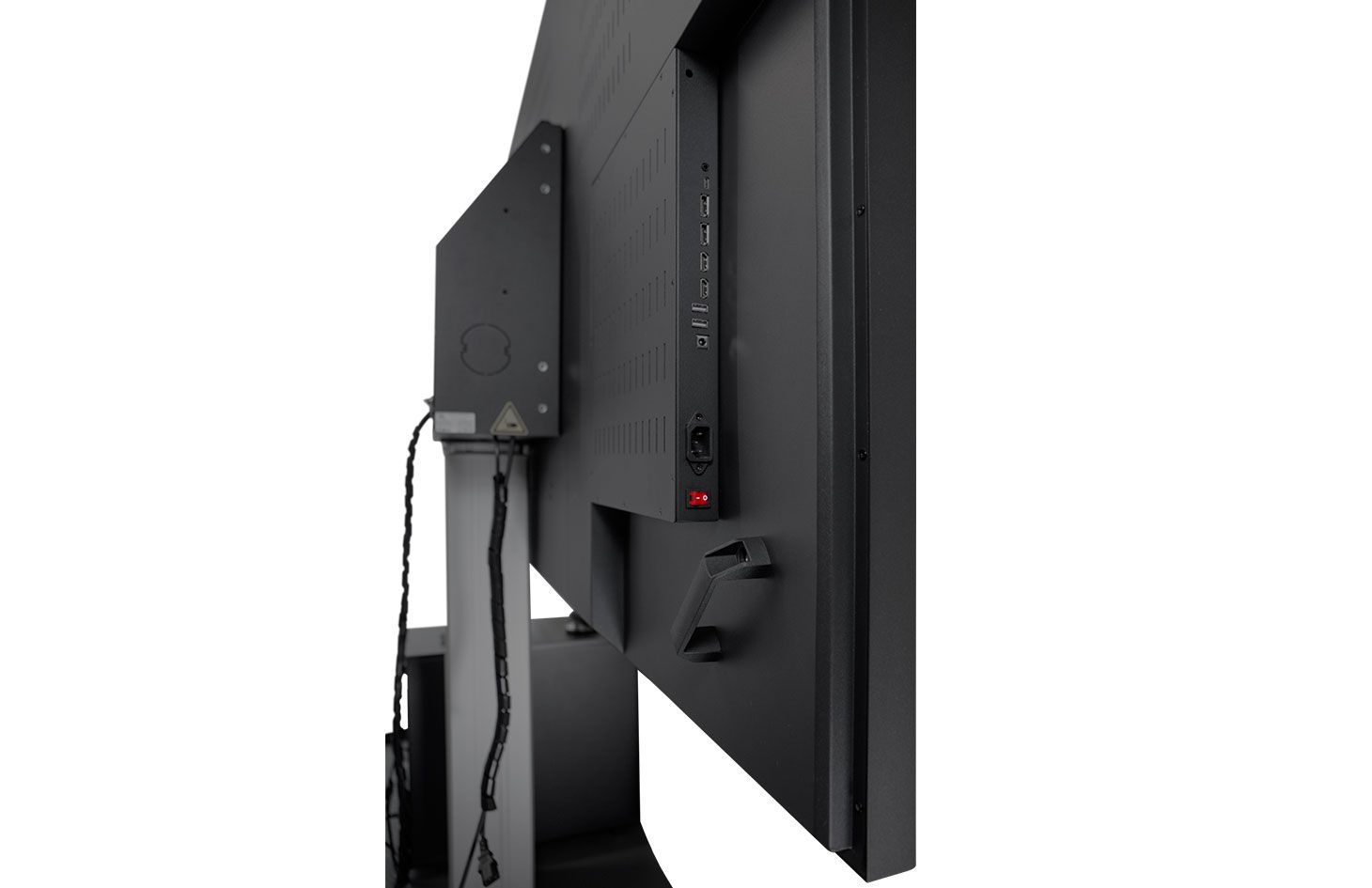

    Interfaces
    1x Typ C, 2x HDMI 2.0, 2x DisplayPort 1.4, 2x USB2
    Audio
    Integrated Speakers 2 x 2 W
    Technical Notes
    Remote control
    Warranty
    With optional carepack extended up to 5 Years;
    12 months bring-in service
    Ideal viewing distance
    ~ 150 – 450 cm
    Visable display size
    1.740 x 978 mm
    VESA mount
    600 x 400 mm
